2022 PROMASTER BUILD
Recently
Sold
Quality and Craftmanship were the top priorities for this build!
Handcrafted Baltic Birch wood cabinets, Corinthian marine carpet, custom cut shower pan, and penny-tiled shower. Decked out with 400 watts of solar, a roof rack, 4 lithium batteries, an invertor, an a/c system plus max fan, heater, and notification center. Comfortable full bed in addition to a work area.
Our latest and greatest build.
"The Van"
You really should see it in person, but we did our best with photos.
New 2022 Ram Promaster 2500 High Roof
235 miles
12 Month Builder's Warranty
Ram Promaster's Warranty Package
Powertrain Limited Warranty 5 years/60K miles
Limited Warranty Coverage 3 years/36K miles
Corrosion Warranty, Federal Emissions Warranty & Emissions Performance Warranty
200 Watt BougeRV Solar Panel (x2)
Four Battle Born Batteries 100Ah 12V LifePO4 Deep Cycle (400 total Amp Hours)
SmartPlug RV 30amp Shore Power Exterior
Two 120volt Interior Outlets plus Four USB Outlets
Victron Multiplus 3000 watt Invertor
Victron Smart Solar MPPT 100/30 Charger
Victron Orion Smart DC-DC Charger
Victron Lynx Distributor
Victron GX Touch 50 Control Panel
Paneltronics AC & DC Breaker Panels
10 Interior LED Cabin Lights
Penny Tile Shower
Thermostatic RV Shower/Faucet Value
Separett Tiny Urine Diverting Toilet
Stoett Nautilus Retractable Shower Door
Custom Shower Pan with Teak Insert
15" x 17" Deep Undermount Sink
Delta Stainless Pull Down Kitchen Faucet
Duxtop 1800w Single Burner Induction Cooktop
Isotherm Cruise 65 Elegance Refrigerator 12V
Baltic Birch Cabinets w/Blum Soft Close Drawer Slides
Solid Surface Countertop with Penny Tile Backsplash
Full Size Mattress on IKEA Lonset Slatted Bed Base and SKORVA Support Beams
12V Dimmable Bedside Lamps with USB Charging Outlets
Baltic Birch Overhead Cabinets w/Blum Soft Close Hinges
a work of art thats ready for the road
2022 Ram Promaster
The build...lots of time, attention to detail and patience.
Planning
Planning starts in the office where a custom layout is created.
The focus is on the critical components needed in the build and overall functionality for the client in mind. Expense sheets, research, purchasing, and detailed CAD drawings will soon follow. This van build got a full mock-up in cardboard before anything was put together!
Framing

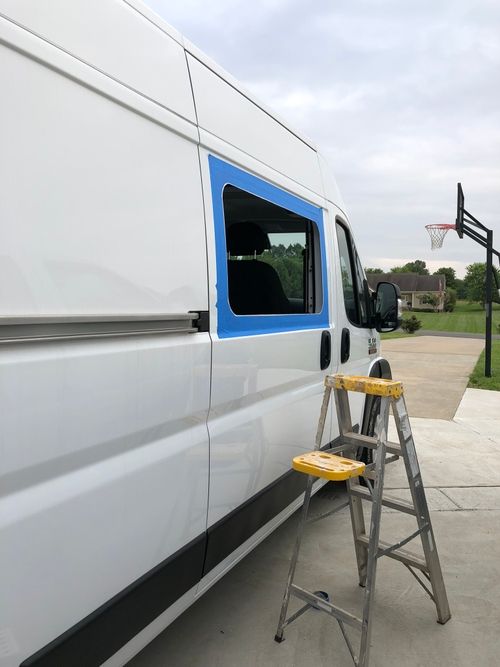

Not all shells are equal. Each needs custom framing to eliminate the squeaks, rattles and noises when cruising down the road. Kilmat sound proofing is added throughout. Havelock wool and 3M Thinsulate is added for insulation, tongue and grove plywood flooring, and custom cut framing for windows, ceilings and walls.
Electrical
Dometic's 12 volt air conditioner plus a MaxxAir Maxx Fan will keep you cool on hot summer days, both are installed with custom made spacers ensuring a perfect fit. Our van also has a 12 volt Webasto heater installed for the cooler nights. Equipped with 400 watts of solar, invertor, and four Battle Born batteries makes this camper van off-grid capable, giving you the freedom to "camp" anywhere.
30amp shore power for the days you decide to live it up at a campground.
Plumbing
You'll be able to keep up with showers and cooking with the 32 gallon fresh water tank and 20 gallon grey water tank. Yes, you have hot water too with a thermostatic shower head to help you save as much as possible.
Our tanks are secured in place to avoid any movement as you go down the road. The toilet is a unique system made by Separette that has a #1 container that's easy to remove and a separate #2 container that collects it in a bag, also very easy to remove and dispose of. The toilet is vented to avoid any unpleasant odors.
The van was built with easy access panels for easy maintenance and repairs.
Build
Our upper and lower cabinets are custom-built from Baltic Birch and will hold up well over time. Rounded corners give you maximum space inside, and all cabinets are equipped with soft close drawer slides and hinges. Each piece is custom-cut to fit perfectly with the curves of the van. The walls are covered with a soft, easy-to-clean fabric. The shower pan was also custom-cut from PVC with a teak insert.
All the extras!
All the good stuff! 12V refrigerator, Solid surface countertop, Induction Cooktop, Lagoon Table, Penny Tile Backsplash and Shower, Custom made Shower Pan with Teak Insert, Sliding Shower Door, Water Filtration System, Corinthian marine grade carpet, USB and 120V outlets, Reading lamps, New Ikea full size mattress, Deep Kitchen Sink with Faucet Sprayer, Fan and A/C Remotes, Finished Inside Doors
